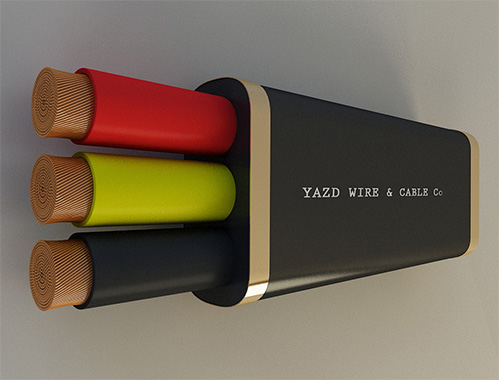

Flat Cables

Flat Cables
Applications:
Flat cables are used as trailing cables for cranes, open field conveyors and shelve service devices.
Flat cables offer the following advantages:
* Extremely small bending radius
* High flexibility
* Minimum waste of space
Product Description:
In the voltage designation of U0/U(Um), The rated voltages of the cables considered in BS and IEC standards are as follows: U0/U(Um)=0.3/0.5(0.6) - 0.6/1(1. 2) KV.
U0 is the rated power frequency voltage between conductor and earth or metallic screen.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
  • Construction features:
    - Conductor size : Up to 16 sq.mm
    - No. of cores: 2 to 5 cores (Parallel)
    - Conductor material: Plain/Tinned copper
    - Conductor type: Solid(Class1)/Stranded(class2)/Fine stranded (Class 5) - round
    - Insulation: Polyvinyl chloride ( PVC)
    - Uninsulated protective conductor (if applicable)
    - Sheath: Polyvinyl chloride (PVC)
    Other features:
    - Ultra violet (UV) resistant colored outer sheath
    - Low smoke and fume (LSF)
    - Halogen free and flame retardant (HFFR)
    - Oil & hydrocarbon resistant
    - Fire resistant
    - Vermin proof
    Standards: BS6004

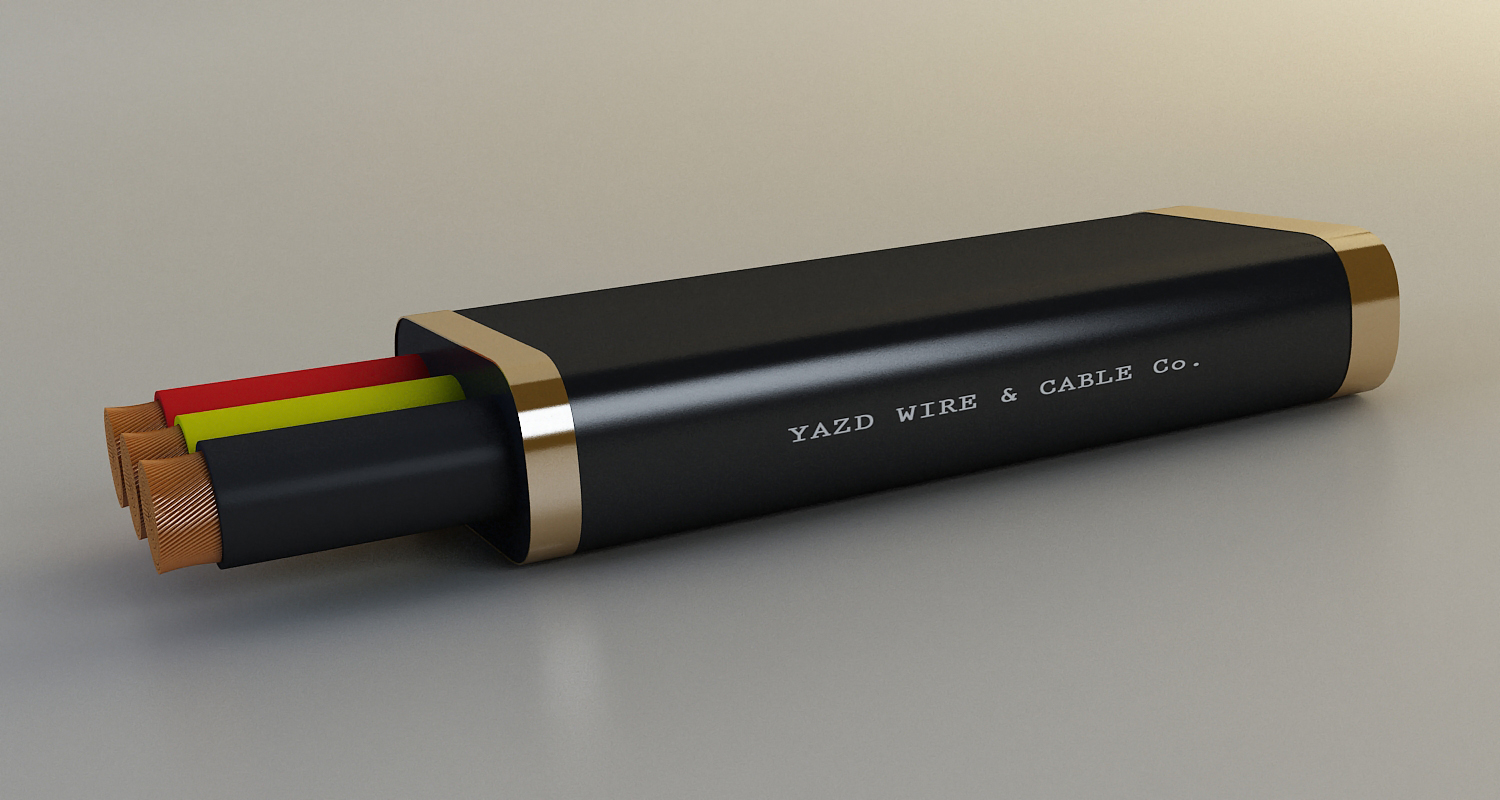

    • Flat Cables

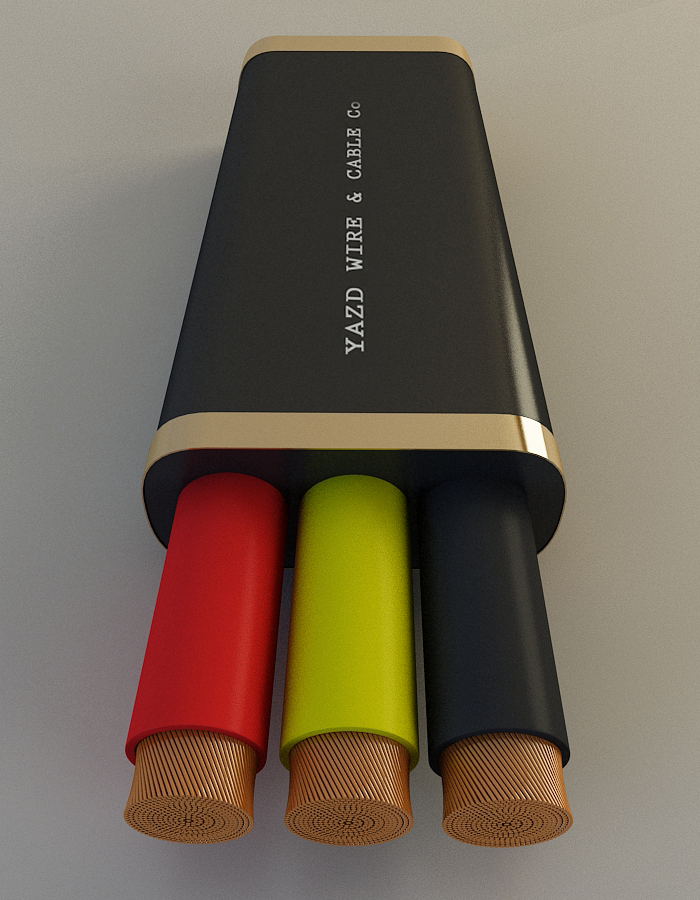

    • Flat Cables

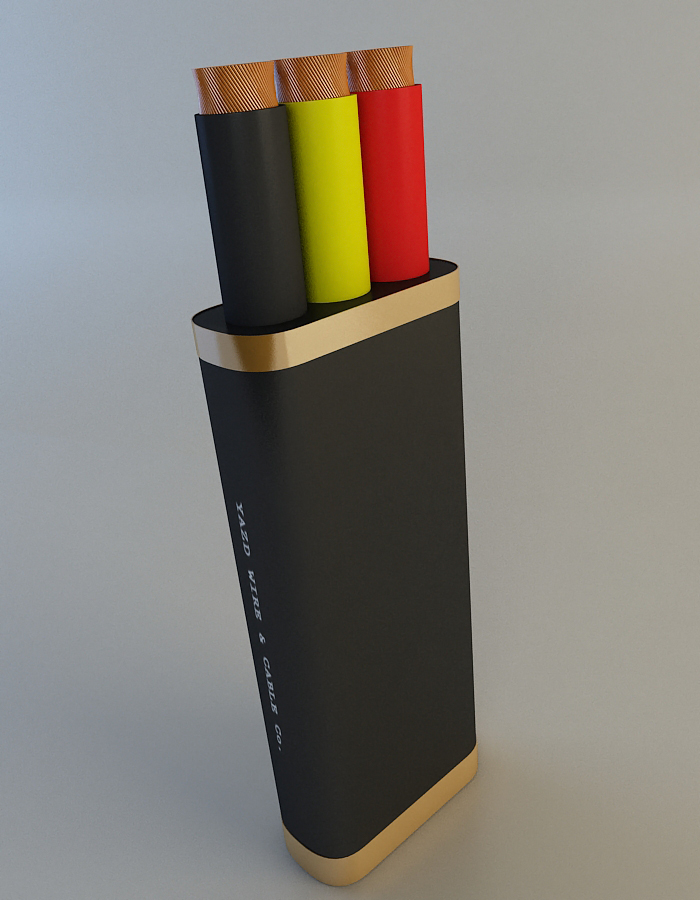

    • Flat Cables
