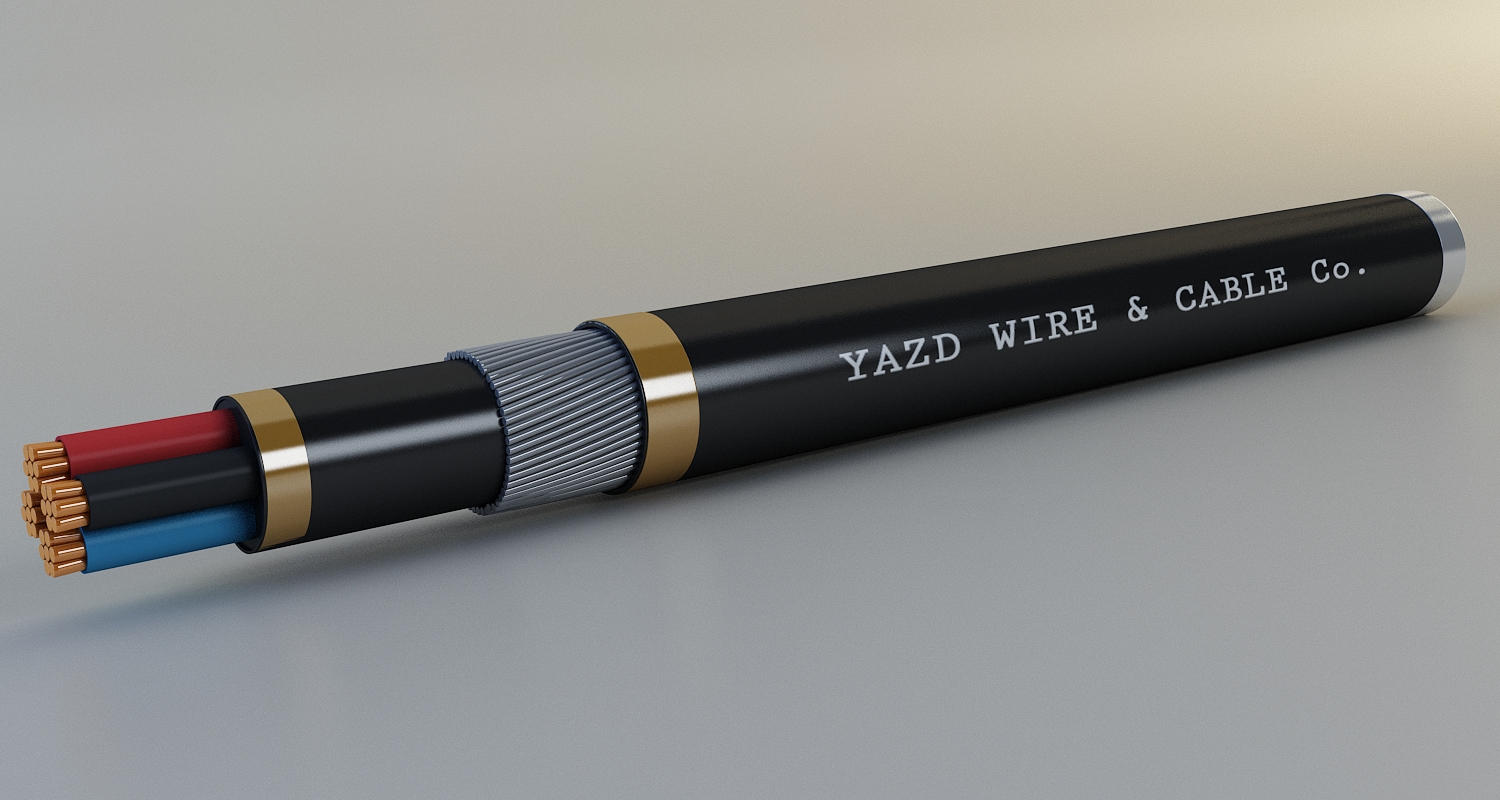

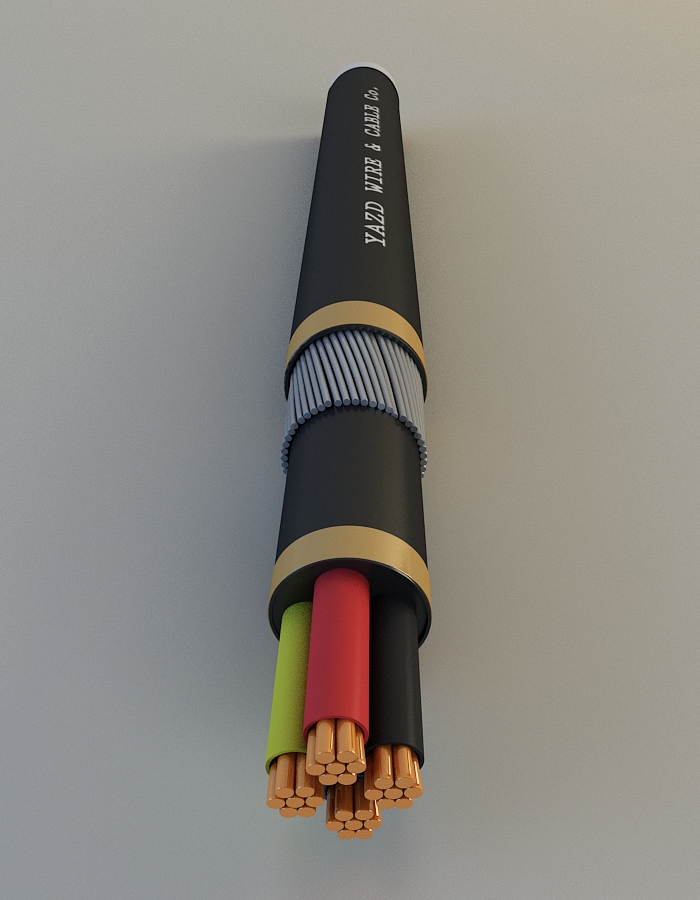

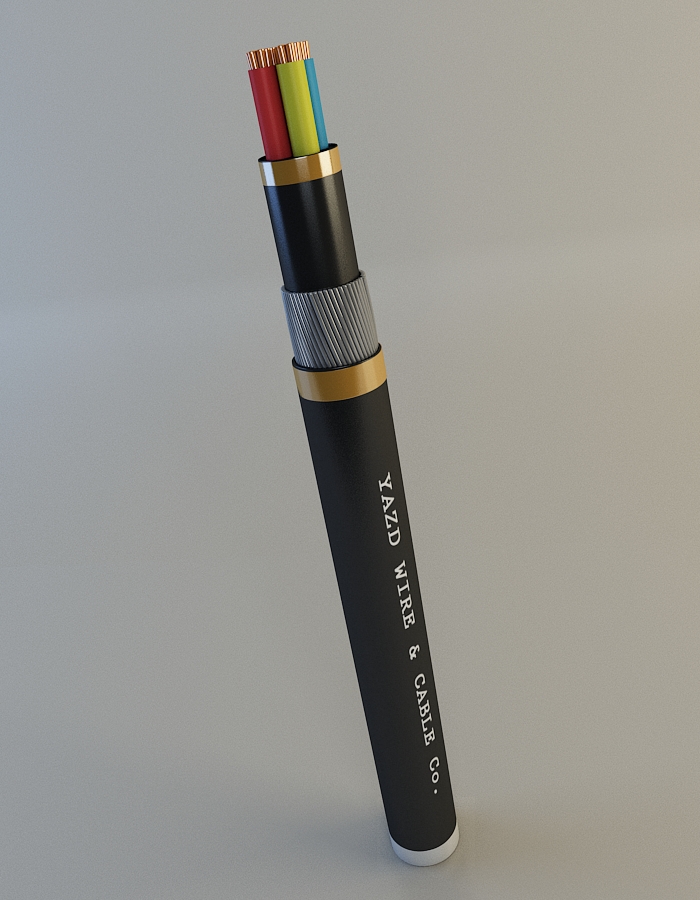

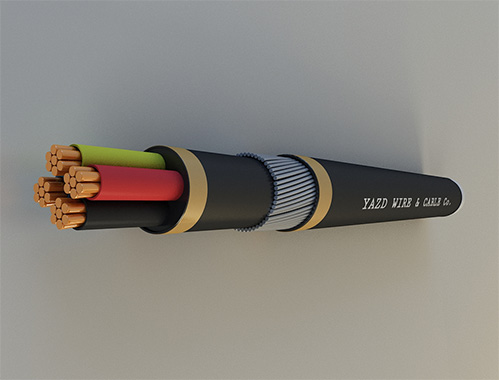

Armored cables
NYRY , N2XRY , NYBY , N2XBY , NAYRY , NA2XRY , NAYBY , NA2XBY
Applications:
• LV power cables for energy supply are used for industry and distribution boards , power stations , panels , house connecting boxes , subscriber networks & street lighting . those cables are installed in open air , underground , indoor and in cable ducts .
• Armored cables would be able to bear external mechanical forces.
Product Description:
In the voltage designation of U0/U(Um), The rated voltages of the cables considered in IEC standard are as follows: U0/U(Um)=0.6/1(1. 2) – 1.8/3(3.6) KV.
U0 is the rated power frequency voltage between conductor and earth or metallic screen.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
Applications:
• LV power cables for energy supply are used for industry and distribution boards , power stations , panels , house connecting boxes , subscriber networks & street lighting . those cables are installed in open air , underground , indoor and in cable ducts .
• Armored cables would be able to bear external mechanical forces.
Product Description:
In the voltage designation of U0/U(Um), The rated voltages of the cables considered in IEC standard are as follows: U0/U(Um)=0.6/1(1. 2) – 1.8/3(3.6) KV.
U0 is the rated power frequency voltage between conductor and earth or metallic screen.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
- Construction features:
- Conductor size: Up to 630 sq.mm
- No. of cores: 1 to 5 cores
- Conductor material: Plain/Tinned copper or aluminum
- Conductor type: Solid(Class1)/Stranded(class2)/Fine stranded (Class 5) - Shaped or round
- Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride ( PVC)
- Filler/Inner sheath: Polyvinyl chloride (PVC)
- Armor:
Multi core cables :Galvanized steel wire, tape or braided armor
Single core cable :Aluminum wire or tape
- Sheath: Polyvinyl chloride (PVC) or high density polyethylene ( HDPE)
Other features:
- Ultra violet (UV) resistant colored outer sheath
- Low smoke and fume (LSF)
- Halogen free and flame retardant (HFFR)
- Oil & hydrocarbon resistant
- Fire resistant
- Vermin proof
Standards: IEC60502-1,VDE0271,INSO3569-1
Note: Cables with rated voltage 1.8/3 (3.6) KV will be fabricated with one or three cores and have a metallic layer surrounding the cores either individually or collectively .
