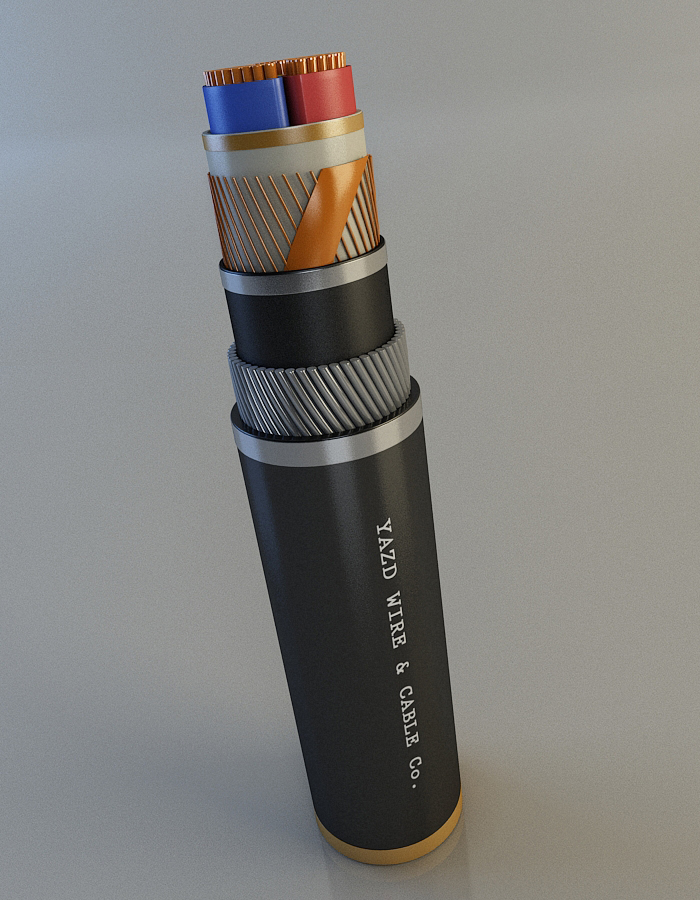

Shielded and armored cables

NYCYRY , NYCYBY , N2XCYRY , N2XCYBY , NYSYRY , NYSYBY , N2XSYRY , N2XSYBY , NAYCYRY , NAYCYBY , NA2XCYRY , NA2XCYBY , NAYSYRY , NAYSYBY , NA2XSYRY , NA2XSYBY

Applications:
LV  power cables for energy supply are used for industry and distribution boards , power stations , panels , house connecting boxes , subscriber networks & street lighting . those cables are installed in open air , underground , indoor and in cable ducts .
• Shielded types are allowed to use it as neutral-protective or earthed conductor . simultaneously , this also is permitted to apply it as a screen .
• Armored types would be able to bear external mechanical forces.

Product Description:
In the voltage designation of U0/U(Um), The rated voltages of the cables considered in IEC standard are as follows: U0/U(Um)=0.6/1(1. 2) – 1.8/3(3.6) KV.
U0 is the rated power frequency voltage between conductor and earth or metallic screen.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.

  • Construction features:
    - Conductor size: Up to 630 sq.mm
    - No. of cores: 1 to 5 cores
    - Conductor material: Plain/Tinned copper or aluminum
    - Conductor type: Solid(Class1)/Stranded(class2)/Fine stranded (Class 5) - Shaped or round
    - Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride ( PVC)
    - Filler/Inner sheath: Polyvinyl chloride (PVC)
    - Metallic shield: Concentric copper wires, Braided, Copper tape or combination of wires & tape
    - Separation sheath: Polyvinyl chloride (PVC) or polyethylene ( PE)
    - Armor:
    Multi core cables: Galvanized steel wire, tape or braided armor
    Single core cable: Aluminum wire or tape
    - Sheath: Polyvinyl chloride (PVC) or high density polyethylene ( HDPE)
    Other features:
    - Ultra violet (UV) resistant colored outer sheath
    - Low smoke and fume (LSF)
    - Halogen free and flame retardant (HFFR)
    - Oil & hydrocarbon resistant
    - Fire resistant
    - Vermin proof

    Standards: IEC60502-1,VDE0271,INSO3569-1

    Note: Cables with rated voltage 1.8/3 (3.6) KV will be fabricated with one or three cores and have a metallic layer surrounding the cores either individually or collectively .

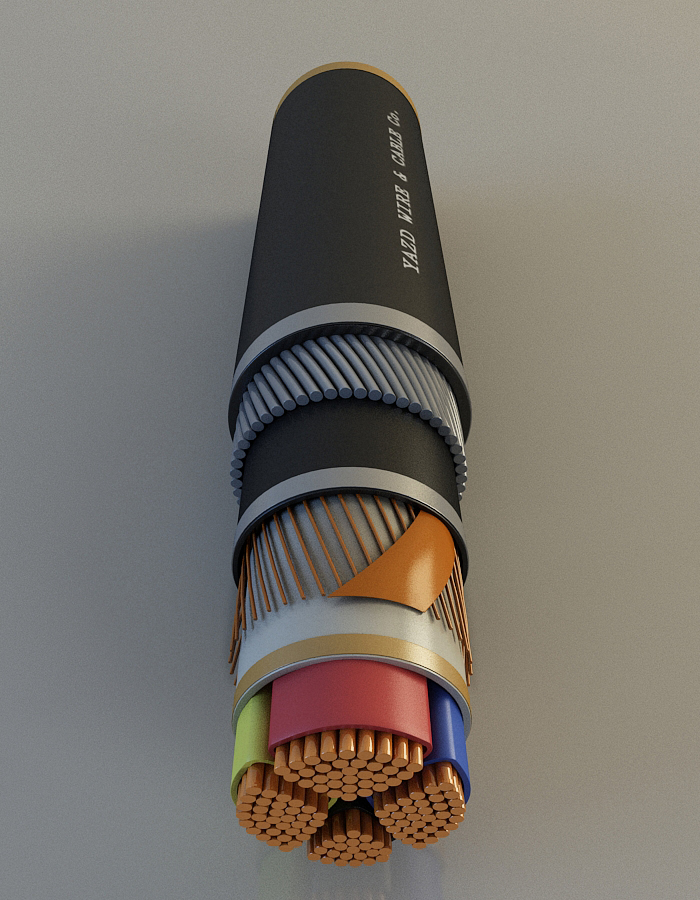

    • Shielded and armored cables

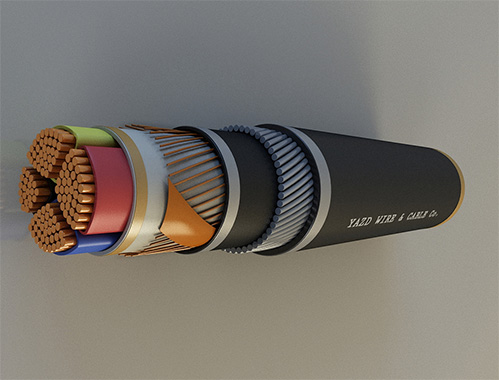

    • Shielded and armored cables

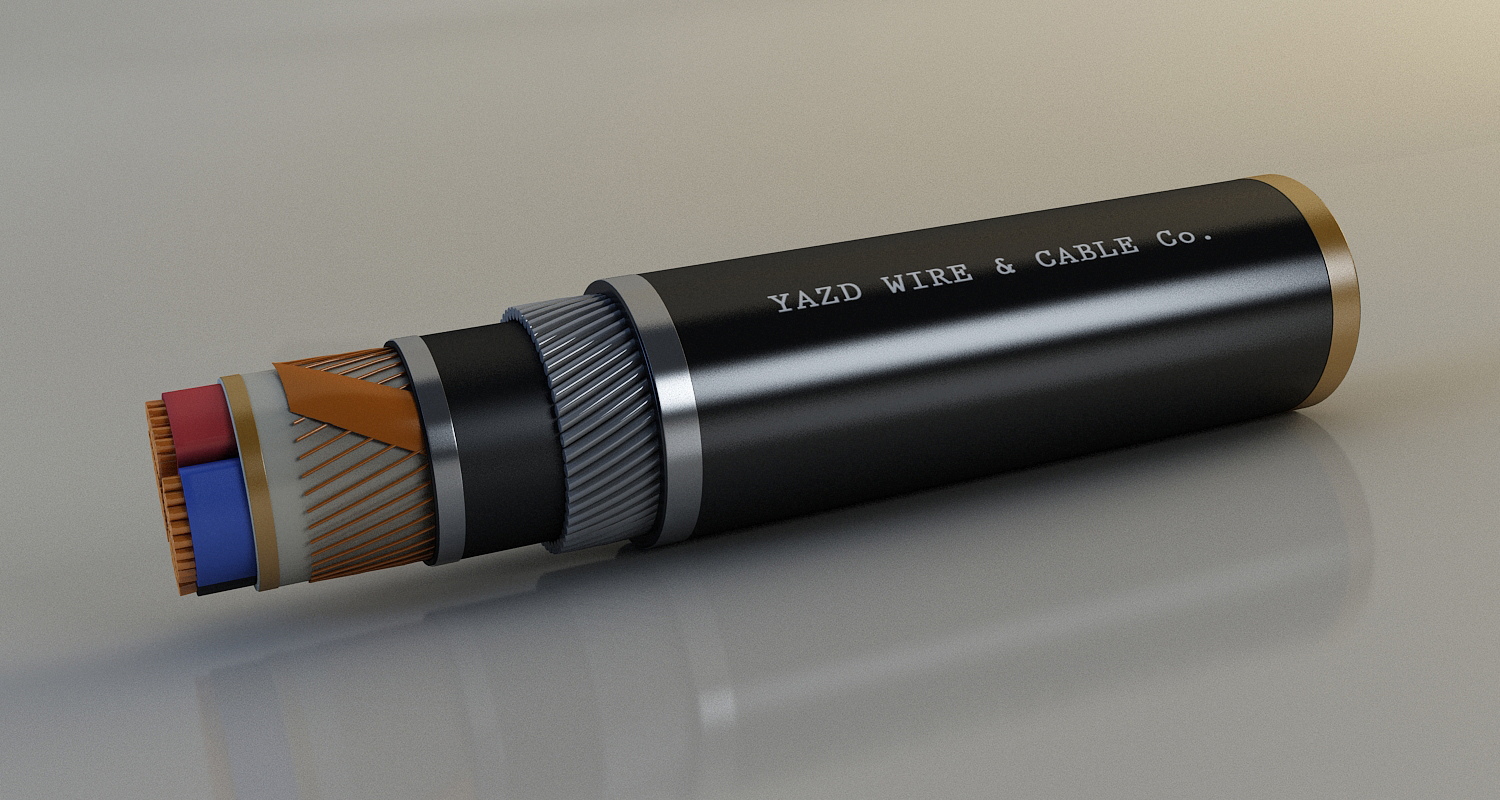

    • Shielded and armored cables
