MV Aerial Bundled Cables (MV-ABC)

MV Aerial Bundled Cables (MV-ABC)
Applications:
• MV-ABC are suitable for aerial installation and for public power distribution networks with rated voltages of  6/10 Up to and including 18/30 KV, Fixed for pylons, clamped to tunnel walls , etc.
• Assembled cores are the same as the ones of MV underground cables. Hence, they can be buried if necessary.
Product Description:
In the voltage designation of U0/U(Um), The rated voltages of the cables considered in IEC standard are as follows: U0/U(Um)= 6/10(12) - 12/20(24) - 18/30(36)KV
U0 is the rated power frequency voltage between conductor and earth or metallic screen.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
  • Construction features:
    - Conductor size: Up to 240 sq.mm
    - No. of cores: Three
    - Conductor material: Aluminum
    - Conductor type: Compacted Round stranded
    - Conductor screen: Semi-conductive compound
    - Insulation: Cross-linked polyethylene (XLPE)
    - Insulation screen: Semi-conductive compound
    - Metallic screen: Copper wires, Copper tape or combination of wires & tape
    - Sheath: Black Polyvinyl chloride (PVC) or high density polyethylene ( HDPE)
    - Messenger: Bare or insulated galvanized stranded steel wires.

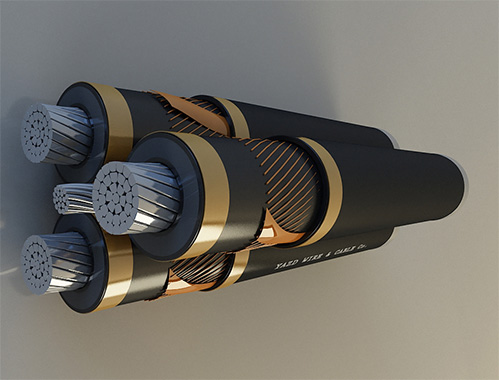

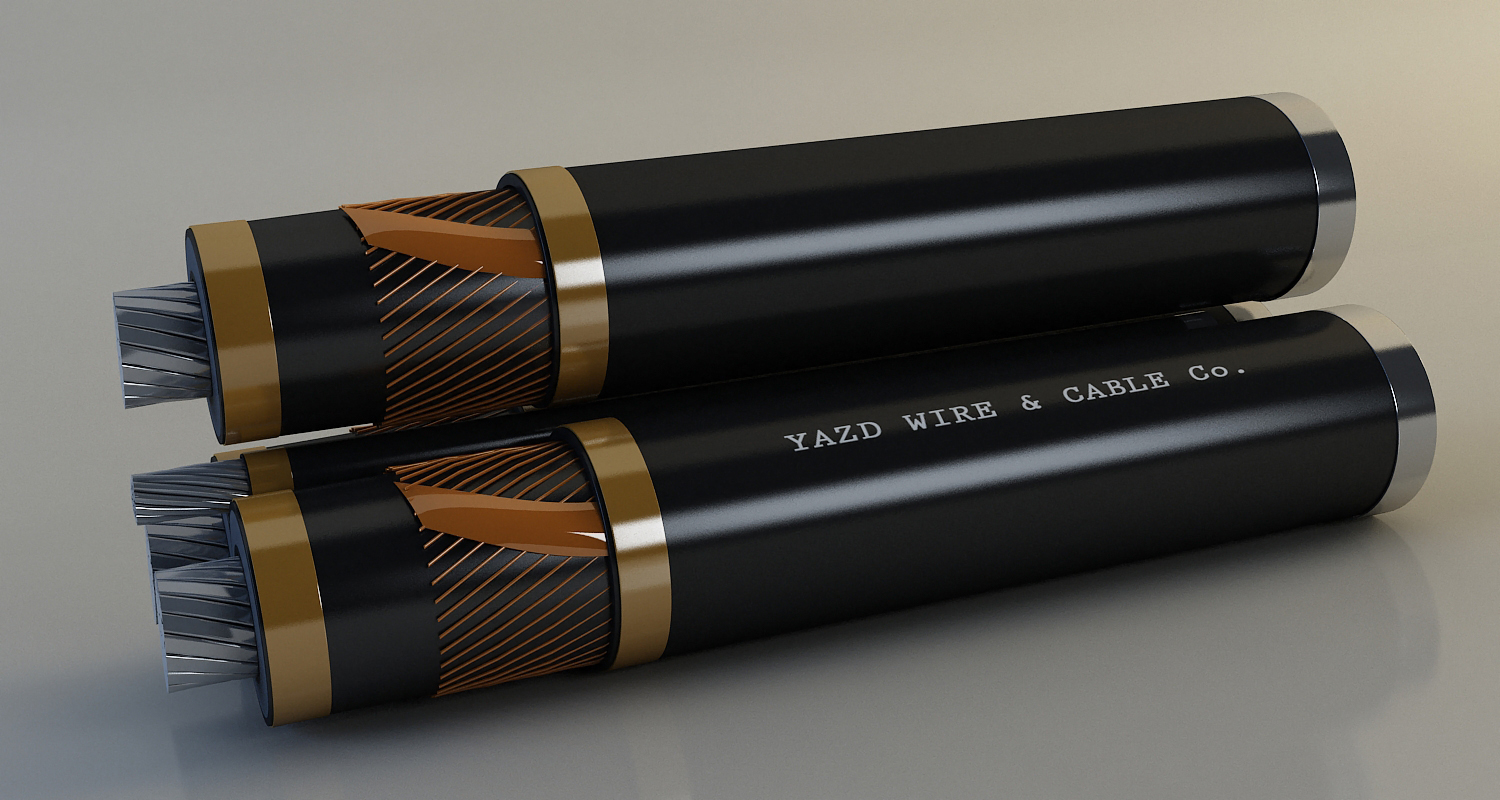

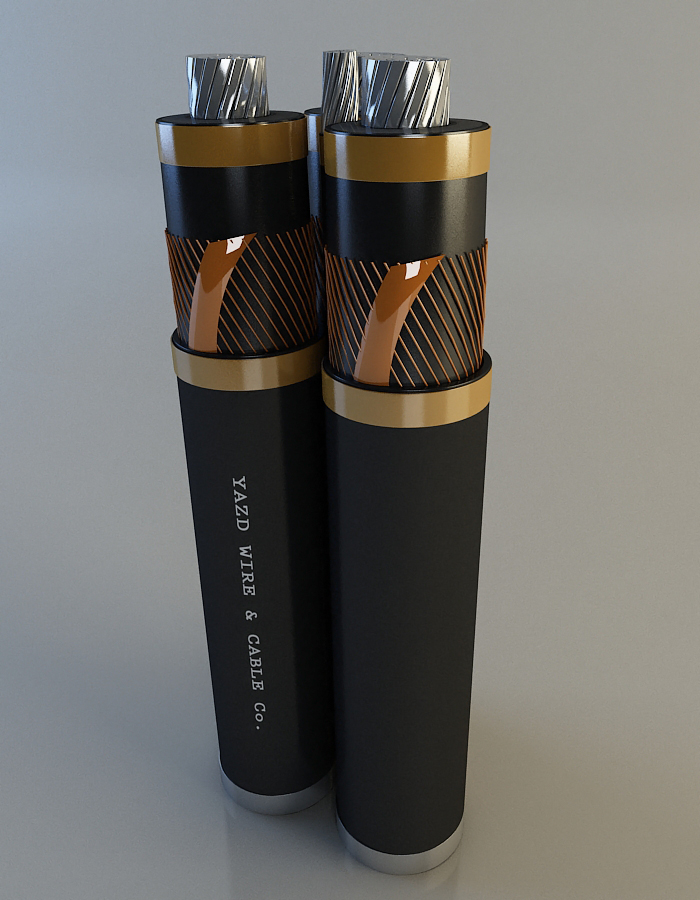

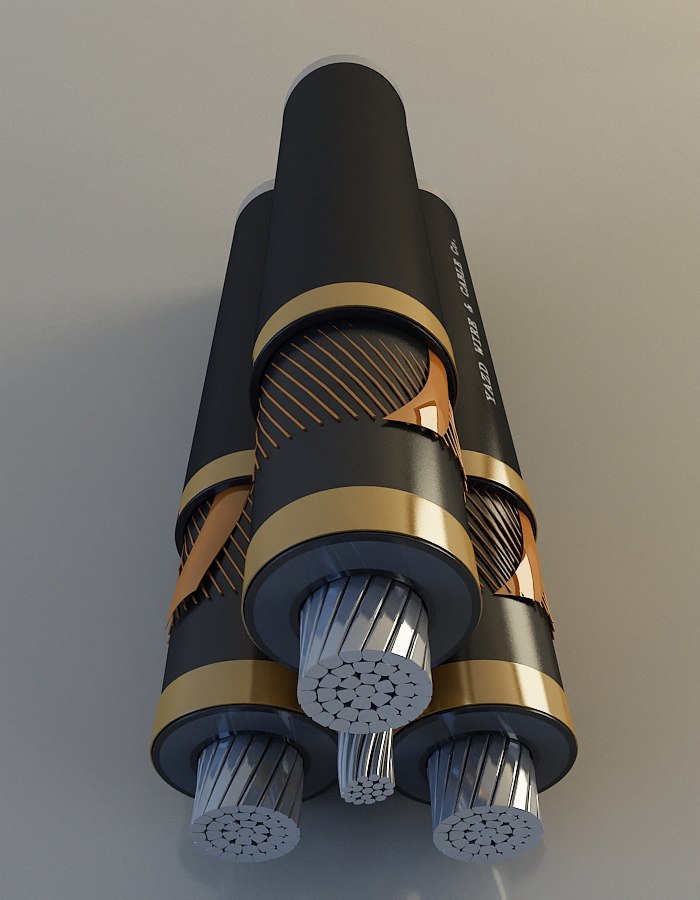

    - Design: MV Aerial bundled cables are made of three XLPE insulated cores assembled around an  insulated or bare steel messenger.
    Other features:
    - Ultra violet (UV) resistant
    - Low smoke and fume (LSF)
    - Halogen free and flame retardant (HFFR)
    Standards: IEC60502-2, AS 3599
