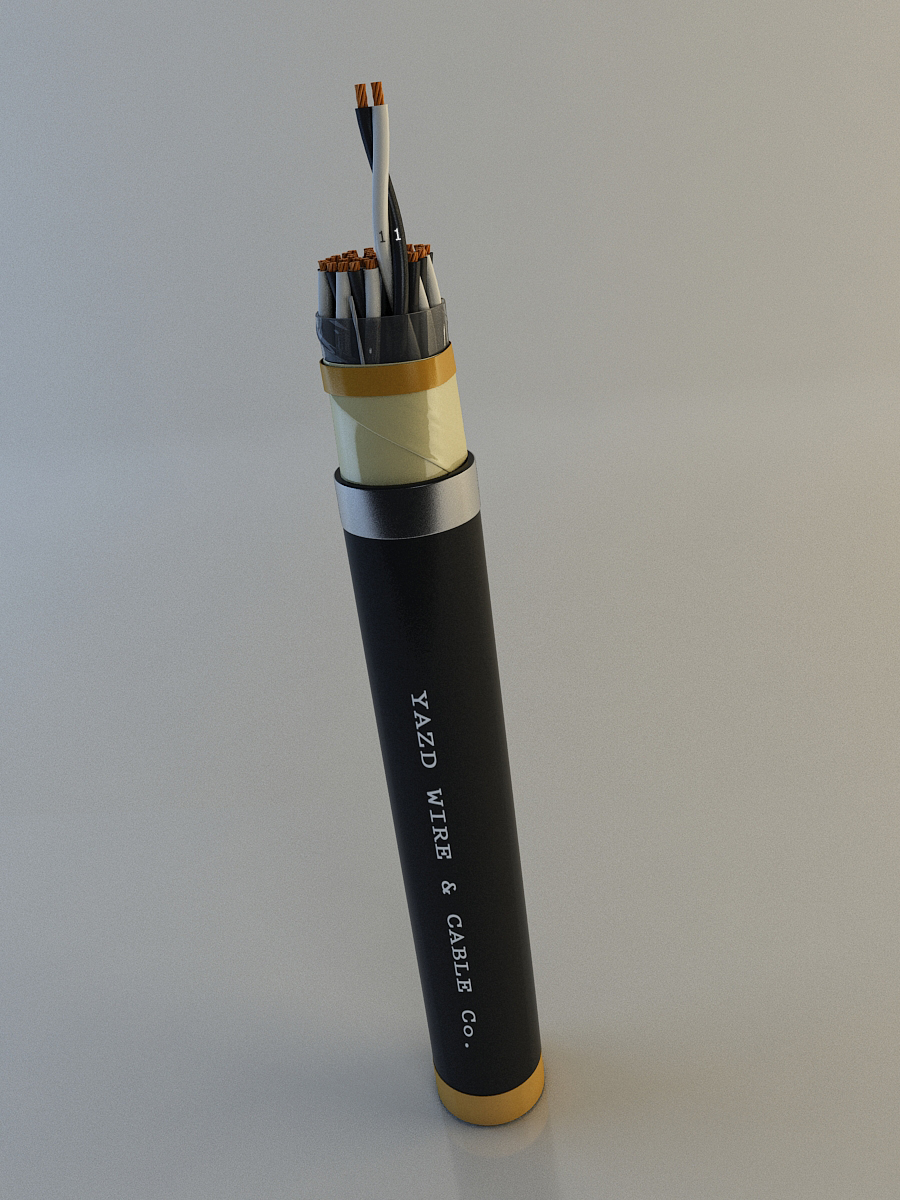

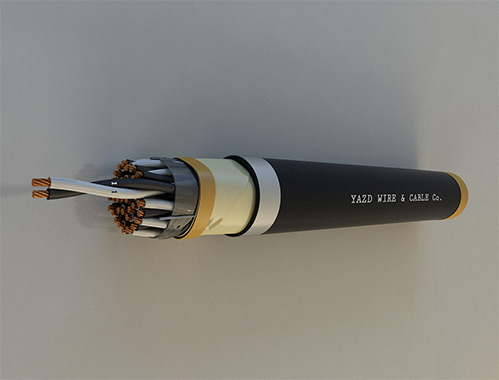

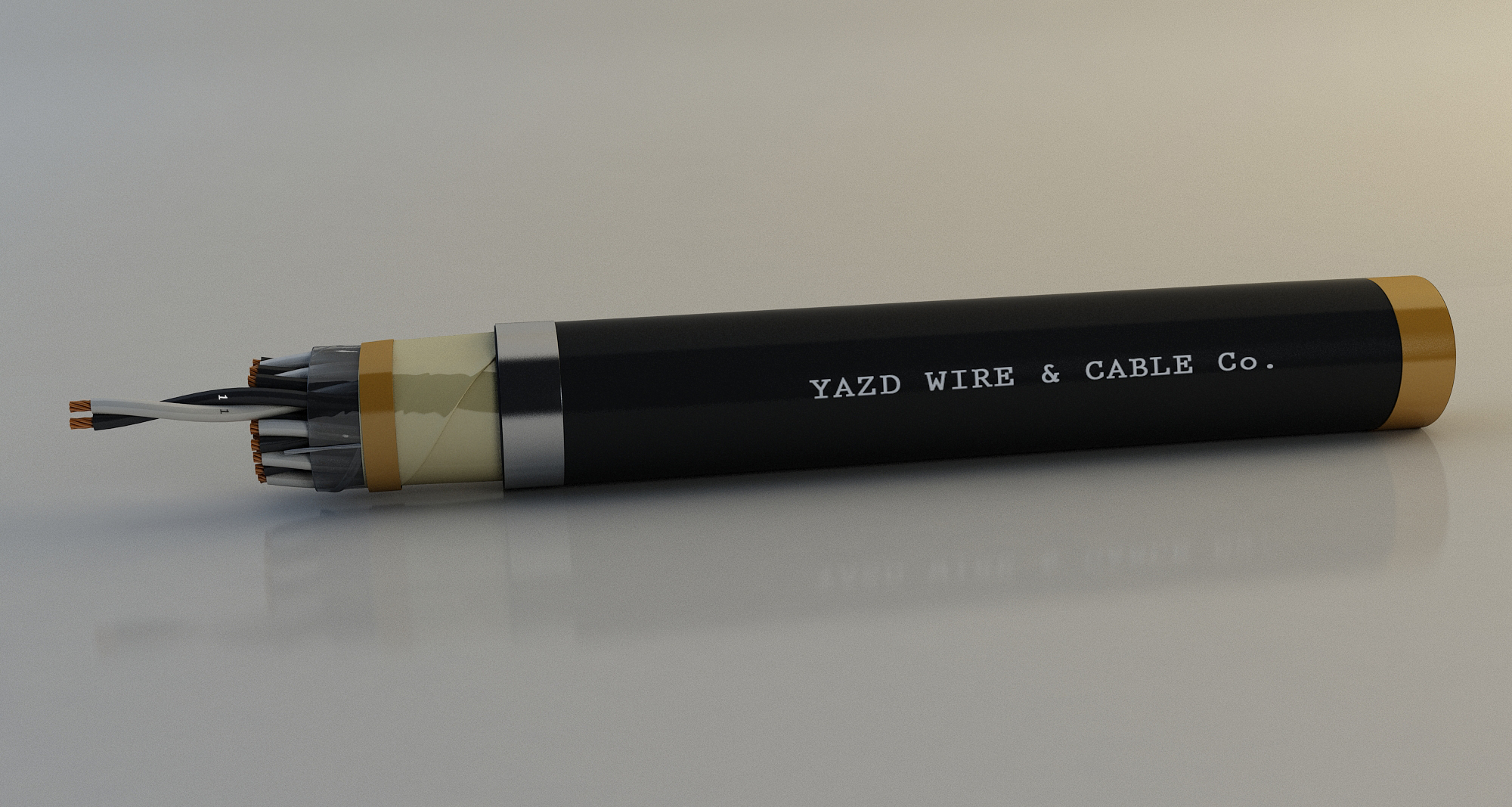

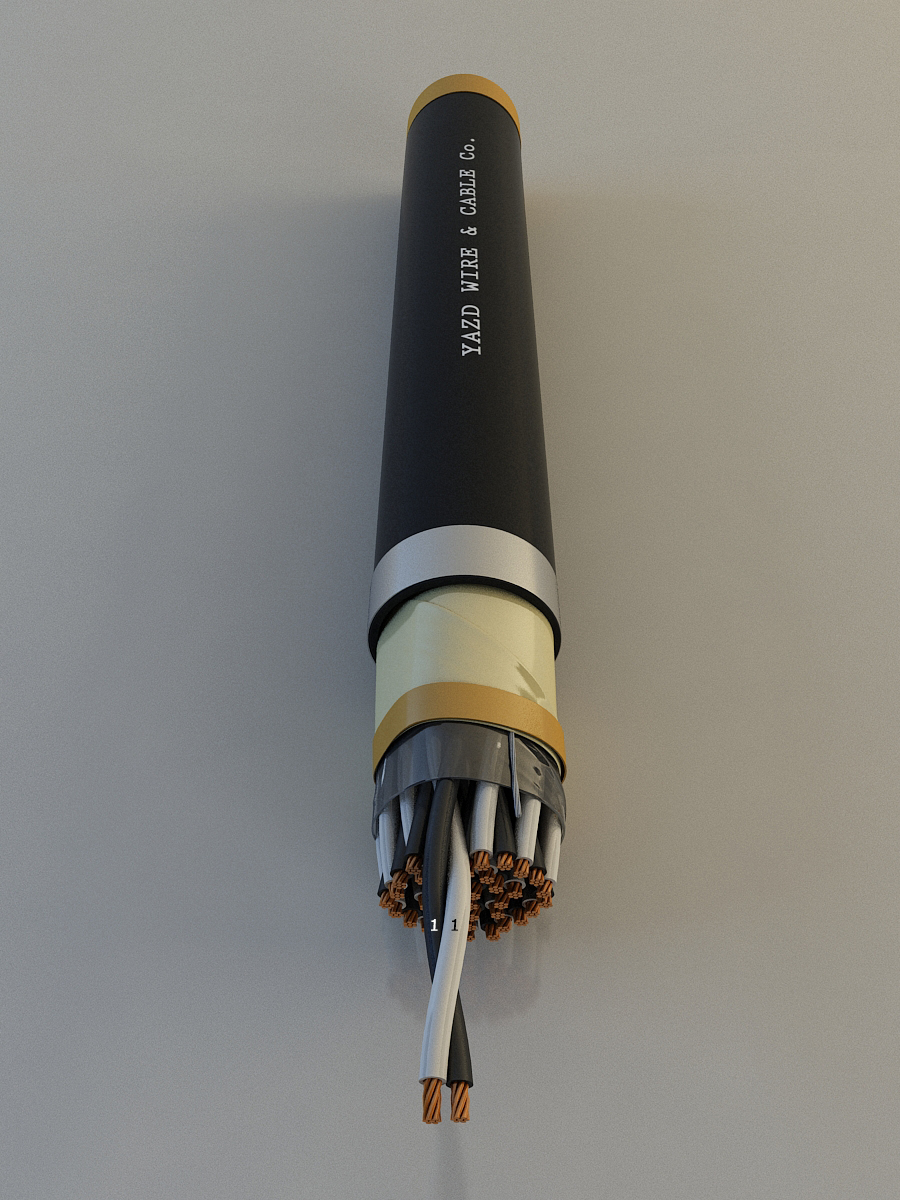

Un-armored-overall screen cables
RE-Y(st)Y, RE-2Y(st)Y, RE-2X(st)Y, RE-Y(st)Yv, RE-2Y(st)Yv, RE-2X(st)Yv
Applications:
• Instrumentation cables are used in data processing and process control and are suitable for installations in open spaces and for underground laying. For digital signals and solenoids , overall screened type may be applied.
• The overall screening of the pairs/cores protect it against outer electrostatic interference fields.
Product Description:
In the voltage designation of U0/U(Um) , the rated voltages of the cables considered in this standard are as follows: U0/U(Um)=300/500(600) V a.c.
U0 is the rated power frequency voltage between conductor and earth or metallic covering.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
Applications:
• Instrumentation cables are used in data processing and process control and are suitable for installations in open spaces and for underground laying. For digital signals and solenoids , overall screened type may be applied.
• The overall screening of the pairs/cores protect it against outer electrostatic interference fields.
Product Description:
In the voltage designation of U0/U(Um) , the rated voltages of the cables considered in this standard are as follows: U0/U(Um)=300/500(600) V a.c.
U0 is the rated power frequency voltage between conductor and earth or metallic covering.
U is the rated power frequency voltage between conductors.
Um is the maximum value of the "highest system voltage" for which the equipment may be used.
- Construction features:
- Size: Up to 2.5 sq.mm
- No. of cores/Pairs: Up to 61 cores and up to 50 pairs
- Conductor material: Plain or tinned copper
- Conductor type: Solid (Class1)/Stranded(class2)/Fine stranded (Class 5) - Round
- Insulation: Cross-linked polyethylene (XLPE) , polyethylene (PE) or Polyvinyl chloride ( PVC)
- Collective screen: Laminated screening tape comprise of aluminum bonded to polyester plus one or more tinned annealed copper wires applied over the screened pairs or laid up cores.
- Sheath: Polyvinyl chloride (PVC) or Polyethylene (PE)
Other features:
- Ultra violet (UV) resistant colored outer sheath
- Low smoke and fume (LSF)
- Halogen free and flame retardant (HFFR)
- Oil & hydrocarbon resistant
- Fire resistant
- Vermin proof
Standards: EN50288-7, PAS 5308 , BS 5308
Note: Insulated communication wire can be applied on request.
